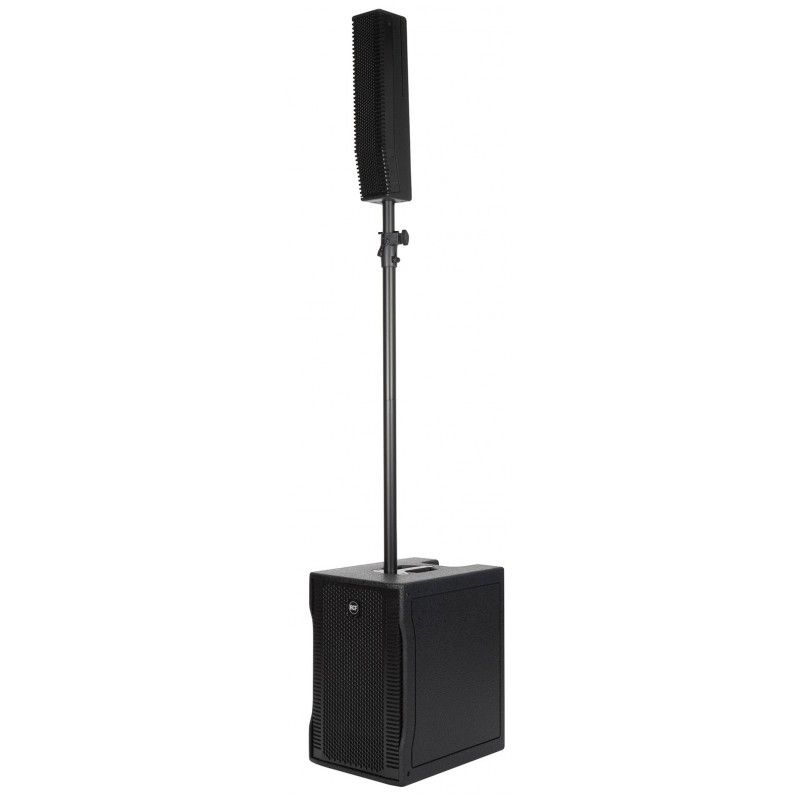

RCF EVOX 8 active two-way array

Evox 8 is a portable compact size sound reinforcement system. Evox 8 combines the quality and reliability of RCF transducers with a very high amplification power. The system features eight 2.0" full range transducers in the line source
satellite and a deep sounding 12" woofer in a bass reflex enclosure. The system is designed to be the perfect high output solution for live music and DJs. The unique vocal attitude and SPL make Evox 8 the perfect tool for larger presentations, corporate events and congresses.
Features
1400 Watt
128 dB max SPL
40 Hz 20 kHz frequency response
12" Woofer, 2.5" v.c.
8 x 2" Ultra compact fullrange, 1.0 v.c.
120° x 30° slightly tilted pattern control
Innovative DSP processing
Pole mountable, easy set-up and transportation
Acoustical Specifications
Frequency Response -3 dB: 40 Hz ÷ 20 Hz
Max SPL: 128 dB
Horizontal coverage angle: 120°
Vertical coverage angle: 30°
Fullrange: 8 x 2", 1.0" v.c.
Woofer: 12", 2.5" v.c.
Input/Output Section
Input connectors: Jack-XLR male
Output connectors: XLR female
Input sensitivity: -2 dBu / + 4 dBu
Processor Section
Crossover frequencies: 220 Hz
Protections: thermal, rms
Limiter: Soft limiter
Controls: Volume, EQ, phase, xover
Amplifier Specifications
Total power: 1400 W PEAK
   High frequencies: 400 W PEAK
   Low frequencies: 1000 W PEAK
Total power: 700 W RMS
   High frequencies: 200 W RMS
   Low frequencies: 500 W RMS
Cooling: Convection
Connections: VDE connector
Cabinet
Cabinet Material: Baltic birch plywood
Hardware: 2 x M6
Handles: 1 top
Pole Mount/Cap: Yes
Colour: black
Physical Specifications
Height: 530/20.86 mm/inch
Width: 346/13.62 mm/inch
Depth: 459/18.10 mm/inch
Net Weight: 23.8/50.70 kg/lbs
