RCF EVOX 5 active two-way array

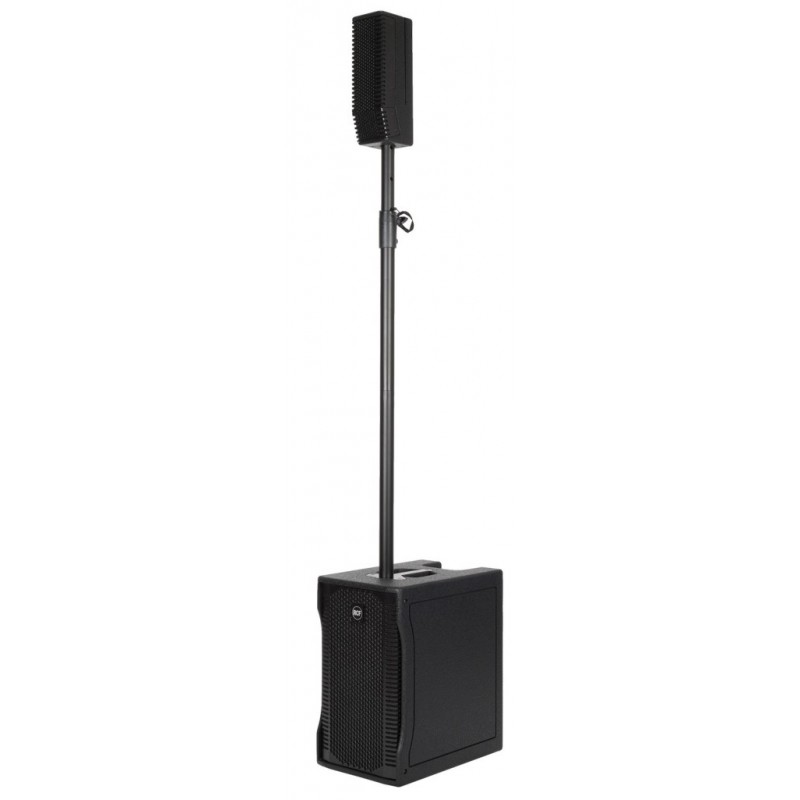

Evox 5 is a portable compact size sound reinforcement system. Evox 5 combines the quality and reliability of RCF transducers with a very high amplification power. The system features five 2.0" full range transducers in the line source satellite and a deep sounding 10" woofer in a bass reflex enclosure. The system is designed to be the perfect portable solution for live music and DJs. The unique vocal attitude and portability make Evox 5 the perfect tool for presentations, corporate events and congresses.
Features
800 Watt
125 dB max SPL
45 Hz 20 kHz frequency response
10" Woofer, 2.0" v.c.
5 x 2" Ultra compact fullrange, 1.0 v.c.
120° x 30° slightly tilted pattern control
Innovative DSP processing
Pole mountable, easy set-up and transportation
Acoustical Specifications
Frequency Response -3 dB: 45 Hz ÷ 20 Hz
Max SPL: 125 dB
Horizontal coverage angle: 120°
Vertical coverage angle: 30°
Fullrange: 5 x 2", 1.0" v.c.
Woofer: 10", 2.0" v.c.
Input/Output Section
Input connectors: Jack-XLR male
Output connectors: XLR female
Input sensitivity: -2 dBu / + 4 dBu
Processor Section
Crossover frequencies: 220 Hz
Protections: thermal, rms
Limiter: Soft limiter
Controls: Volume, EQ, phase, xover
Amplifier Specifications
Total power: 800 W PEAK
   High frequencies: 200 W PEAK
   Low frequencies: 600 W PEAK
Total power: 400 W RMS
   High frequencies: 100 W RMS
   Low frequencies: 300 W RMS
Cooling: Convection
Connections: VDE connector
Cabinet
Cabinet Material: Baltic birch plywood
Hardware: 2 x M6
Handles: 1 top
Pole Mount/Cap: Yes
Colour: black
Physical Specifications
Height: 490/19.29 mm/inch
Width: 288/11.34 mm/inch
Depth: 427/16.81 mm/inch
Net Weight: 19.2/42.32 kg/lbs
Destinatario

Nome del tuo amico ^*

Indirizzo email del tuo amico ^*

Annulla
Stampa

Descrizione

Evox 5 is a portable compact size sound reinforcement system. Evox 5 combines the quality and reliability of RCF transducers with a very high amplification power. The system features five 2.0" full range transducers in the line source satellite and a deep sounding 10" woofer in a bass reflex enclosure. The system is designed to be the perfect portable solution for live music and DJs. The unique vocal attitude and portability make Evox 5 the perfect tool for presentations, corporate events and congresses.

Features

800 Watt
125 dB max SPL
45 Hz 20 kHz frequency response
10" Woofer, 2.0" v.c.
5 x 2" Ultra compact fullrange, 1.0 v.c.
120° x 30° slightly tilted pattern control
Innovative DSP processing
Pole mountable, easy set-up and transportation

Acoustical Specifications

Frequency Response -3 dB: 45 Hz ÷ 20 Hz
Max SPL: 125 dB
Horizontal coverage angle: 120°
Vertical coverage angle: 30°
Fullrange: 5 x 2", 1.0" v.c.
Woofer: 10", 2.0" v.c.

Input/Output Section

Input connectors: Jack-XLR male
Output connectors: XLR female
Input sensitivity: -2 dBu / + 4 dBu

Processor Section

Crossover frequencies: 220 Hz
Protections: thermal, rms
Limiter: Soft limiter
Controls: Volume, EQ, phase, xover

Amplifier Specifications

Total power: 800 W PEAK
High frequencies: 200 W PEAK
Low frequencies: 600 W PEAK
Total power: 400 W RMS
High frequencies: 100 W RMS
Low frequencies: 300 W RMS
Cooling: Convection
Connections: VDE connector

Cabinet

Cabinet Material: Baltic birch plywood
Hardware: 2 x M6
Handles: 1 top
Pole Mount/Cap: Yes
Colour: black

Physical Specifications

Height: 490/19.29 mm/inch
Width: 288/11.34 mm/inch
Depth: 427/16.81 mm/inch
Net Weight: 19.2/42.32 kg/lbs
